- 制造厂商：AD
- 产品类别：串行总线缓冲器、扩展器和加速度计
- 技术类目：串行总线缓冲器、扩展器和加速度计
- 功能描述：采用电容缓冲的 4 通道、二线式总线多路复用器
- （AD代理渠道，提供当日发货、严格的质量标准，满足您的目标价格）
The downstream channels are also provided with ALERT1-ALERT4 inputs for fault reporting. Programmable timeout circuitry disconnects the downstream buses if the bus is stuck low. When activated, rise time accelerators source currents into the 2-wire bus pins to reduce rise time. Driving the ENABLE pin low restores all features to their default states. Three address pins provide 27 distinct addresses.
The LTC4306 is available in 24-lead QFN (4mm × 5mm) and SSOP packages.
应用
- Nested Addressing

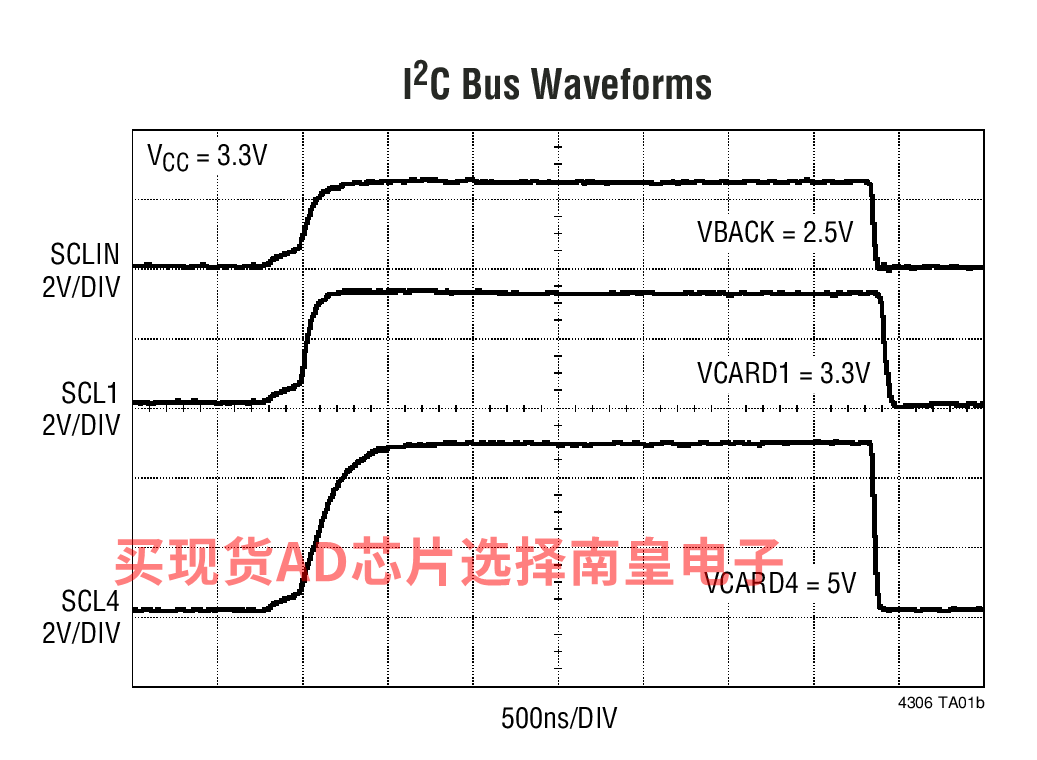

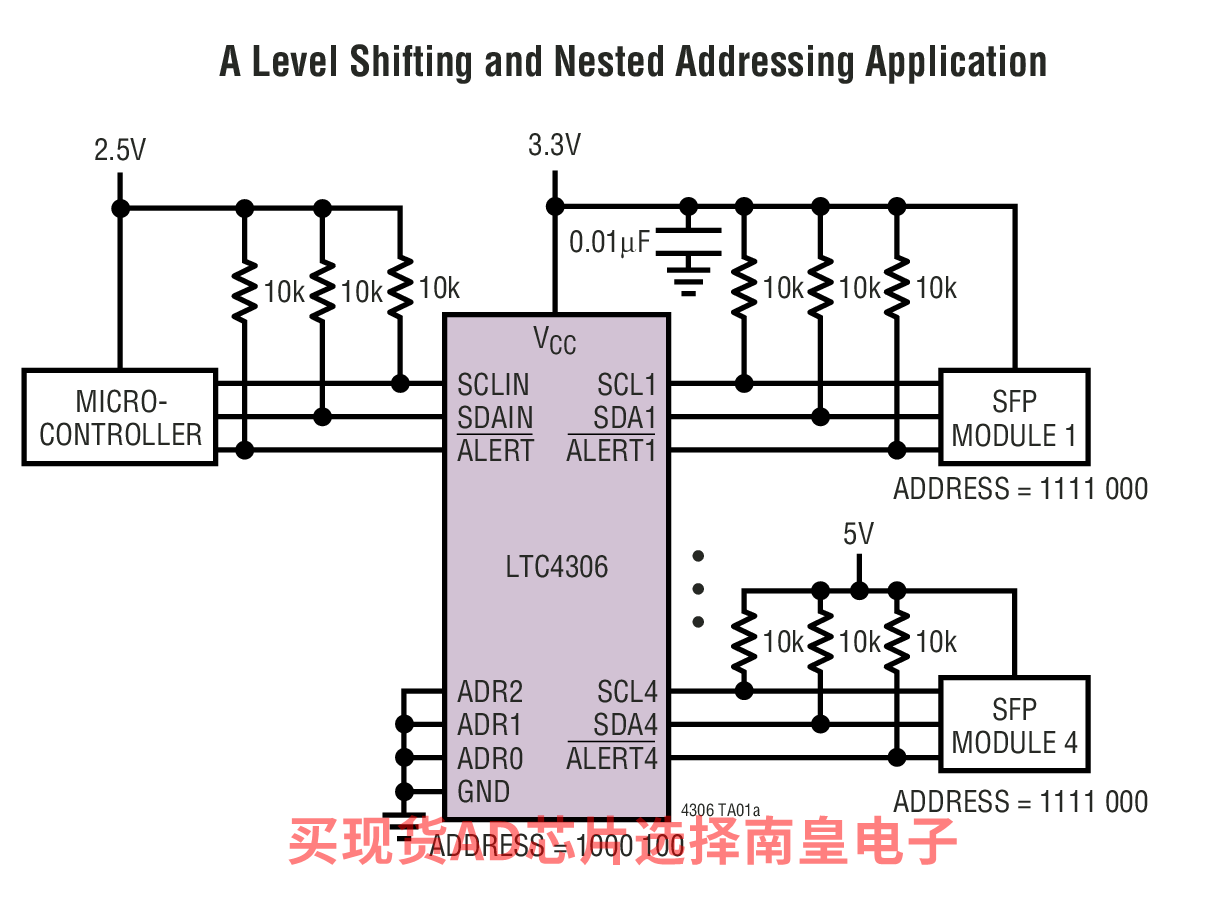

- 5V/3.3V Level Translator
- Capacitance Buffer/Bus Extender
- 1:4 2-Wire Multiplexer/Switch
- Connect SDA and SCL Lines with 2-Wire Bus Commands
- Supply Independent Bidirectional Buffer for SDA and SCL Lines Increases Fan-Out
- Programmable Disconnect from Stuck Bus
- Compatible with I2C and SMBus Standards
- Rise Time Accelerator Circuitry
- SMBus Compatible ALERT Response Protocol
- Two General Purpose Inputs-Outputs
- Prevents SDA and SCL Corruption During Live Board
- Insertion and Removal from Backplane
- ±10kV Human Body Model ESD Ruggedness

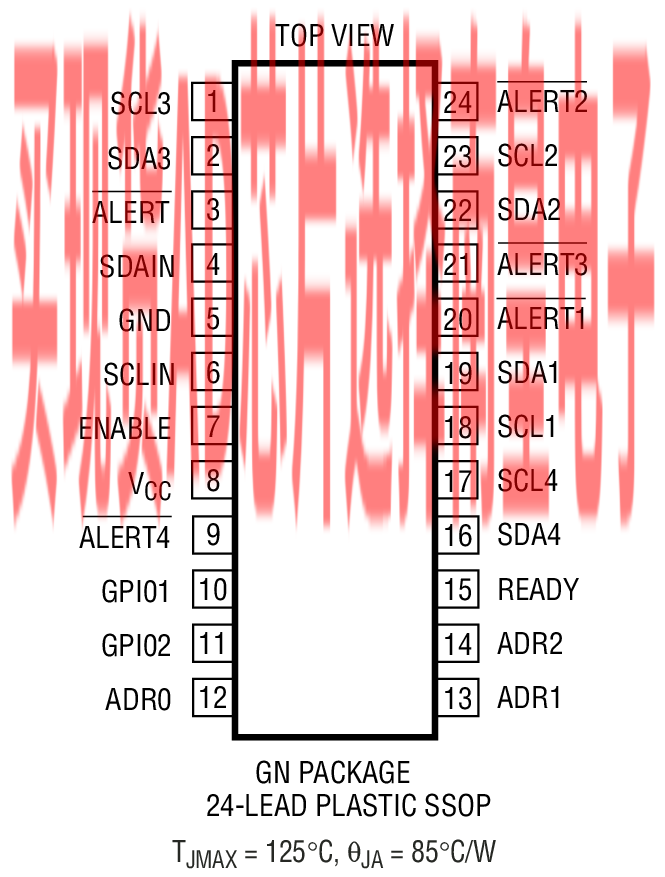

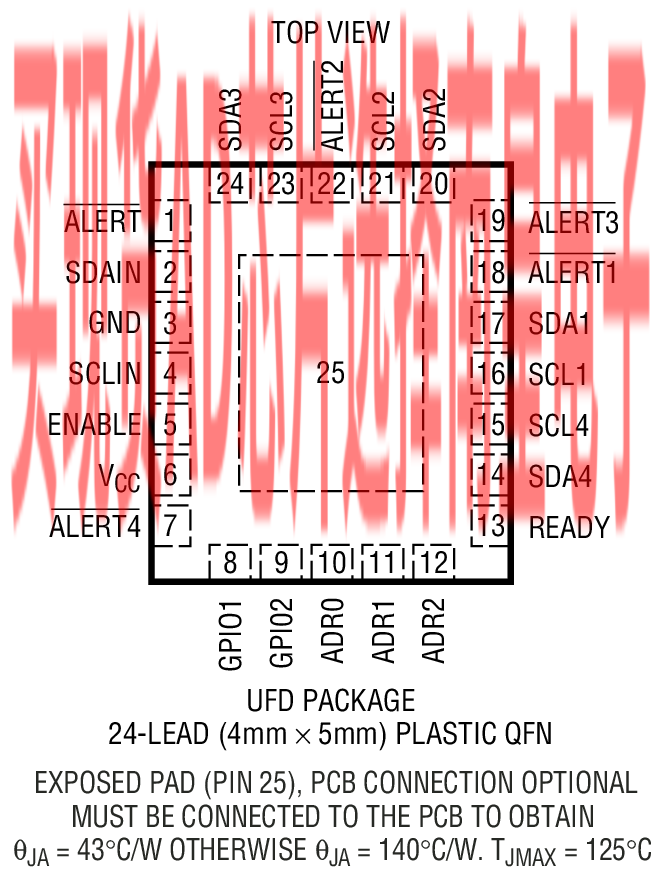

- 24-Lead QFN (4mm × 5mm) and SSOP Packages
LTC4306CGN#PBF，封装：24-Lead SSOP (Narrow 0.15 Inch)，包装形式及数量：管装，55，工作温度：0 to 70C，AD官网报价：4.64（100-499个）；3.92（1000+个）
LTC4306CGN#TRPBF，封装：24-Lead SSOP (Narrow 0.15 Inch)，包装形式及数量：卷带，2500，工作温度：0 to 70C，AD官网报价：4.64（100-499个）；3.92（1000+个）
LTC4306CUFD#PBF，封装：24-Lead QFN (4mm x 5mm x 0.75mm w/ EP)，包装形式及数量：管装，73，工作温度：0 to 70C，AD官网报价：4.71（100-499个）；3.97（1000+个）
LTC4306CUFD#TRPBF，封装：24-Lead QFN (4mm x 5mm x 0.75mm w/ EP)，包装形式及数量：卷带，2500，工作温度：0 to 70C，AD官网报价：4.71（100-499个）；3.97（1000+个）
LTC4306IGN#PBF，封装：24-Lead SSOP (Narrow 0.15 Inch)，包装形式及数量：管装，55，工作温度：-40 to 85C，AD官网报价：5.54（100-499个）；4.69（1000+个）
LTC4306IGN#TRPBF，封装：24-Lead SSOP (Narrow 0.15 Inch)，包装形式及数量：卷带，2500，工作温度：-40 to 85C，AD官网报价：5.54（100-499个）；4.69（1000+个）
LTC4306IUFD#PBF，封装：24-Lead QFN (4mm x 5mm x 0.75mm w/ EP)，包装形式及数量：管装，73，工作温度：-40 to 85C，AD官网报价：5.61（100-499个）；4.74（1000+个）
LTC4306IUFD#TRPBF，封装：24-Lead QFN (4mm x 5mm x 0.75mm w/ EP)，包装形式及数量：卷带，2500，工作温度：-40 to 85C，AD官网报价：5.61（100-499个）；4.74（1000+个）

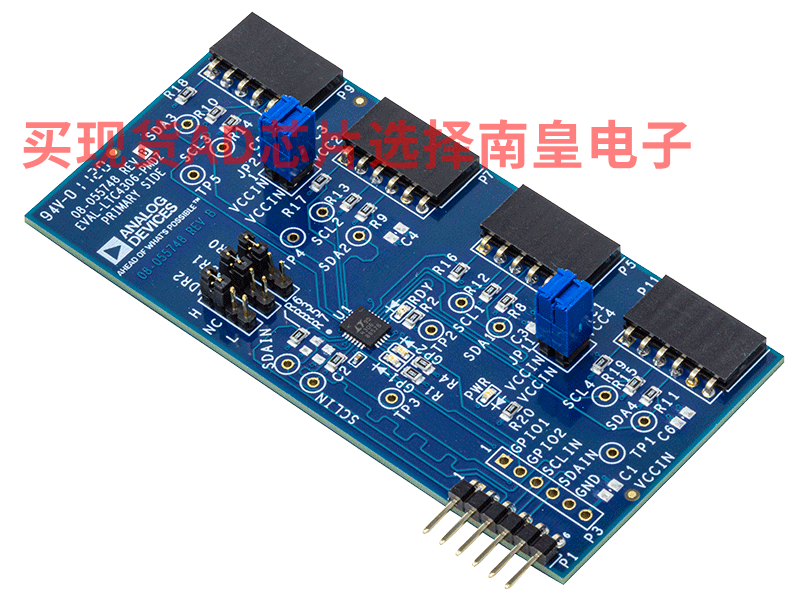

EVAL-LTC4306：LTC4306 Evaluation Board with PMOD Connectors on Both Upstream and Downstream
The EVAL-LTC4306-PMDZ features LTC4306, a 4-channel, 2-wire I2C bus and SMBus compatible multiplexer having bus buffers that provide capacitive isolation between the upstream bus and downstream buses. This evaluation board provides 6-pin PMOD connectors for upstream and downstream connection for compatibility with PMOD form factors such as EVAL-ADICUP3029, an Arduino based Wireless Development Platform for Internet of Things applications based on an ultra-low power ARM Cortex-M3 processor.
Pmod is the Digilent defined standard of Peripheral Modules, small I/O interface boards that offer an ideal way to extend the capabilities of programmable logic and microcontroller boards. They allow sensitive signal conditioning circuits and high-power drive circuits to be placed where they are most effective —near sensors and actuators.
EVAL-LTC4306-PMDZ comes with PMOD connectors on both upstream and downstream side for compatibility with PMOD form factors, 10K pull up resistors on upstream and all downstream buses and 0.1uF bypass capacitor on the upstream side. The user has the option to add 6 pin 2.54mm pitch pin header for connection to the GPIOs (General Purpose Input/Output pins) on EVAL-LTC4306-PMDZ for extra functionality. The user also has the option to add test points on different places on the board for fault monitoring and place additional bypass capacitors (0805 size footprint) on the upstream and the downstream side for defense against any unwanted noise in their system for adequate bypassing on power supply lines.

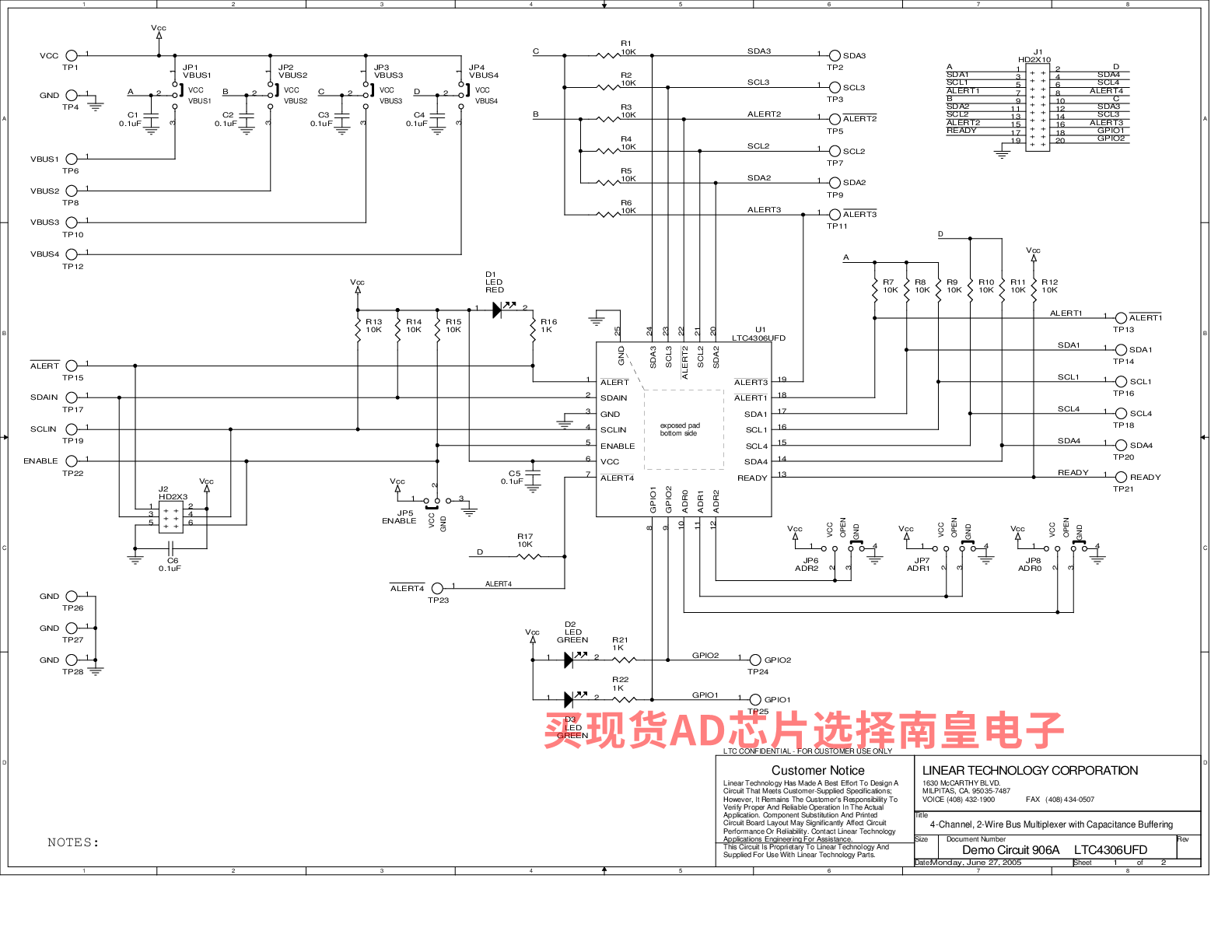

DC906A：LTC4306 4通道I2C多路复用器
DC906A：LTC4306带电容缓冲的4通道2线式总线多路复用器的演示板。
