- 制造厂商：AD
- 产品类别：精密模数转换器- 20 MSPS
- 技术类目：单通道模数转换器
- 功能描述：18 位、15Msps SAR ADC
- （AD代理渠道，提供当日发货、严格的质量标准，满足您的目标价格）
LTC2387-18 是一款非常适合众多应用的低噪声、高速、18 位、15Msps 逐次逼近型寄存器 (SAR) ADC。LTC2387-18 兼具卓越的线性和动态范围，因而成为了高速成像和仪表应用的理想选择。无延迟操作提供了一种面向高速控制环路应用的独特解决方案。高输入频率下的非常低失真可实现需要宽动态范围和大信号带宽的通信应用。

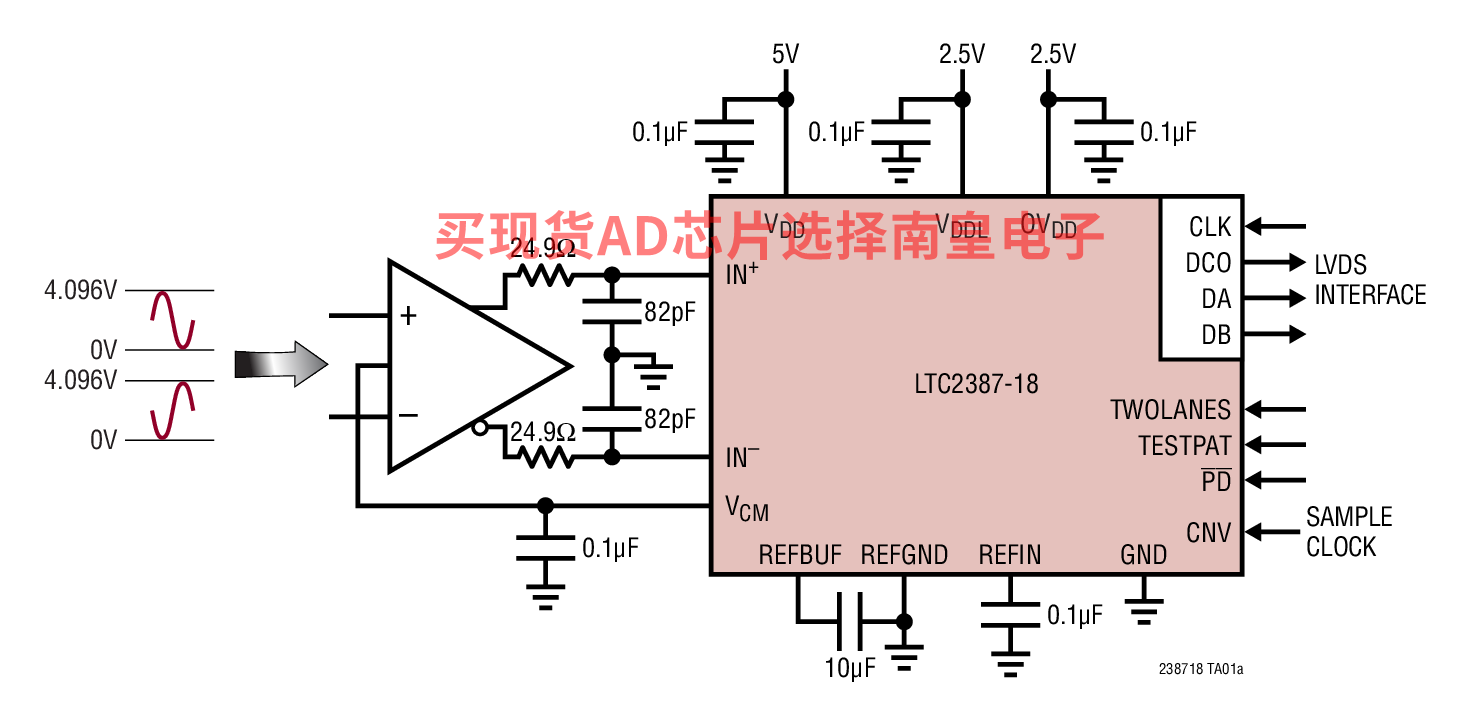

为了在尽量减少数据线数目的同时支持高速运作，LTC2387-18 具有一个串行 LVDS 数字接口。该 LVDS 接口拥有单线道和双线道输出模式，从而允许用户针对每种应用来优化接口数据速率。
Applications
- 高速数据采集
- 成像
- 通信
- 控制环路
- 仪表
- ATE (自动测试设备)
- 15Msps 吞吐速率
- 无流水线延迟，无周期延迟

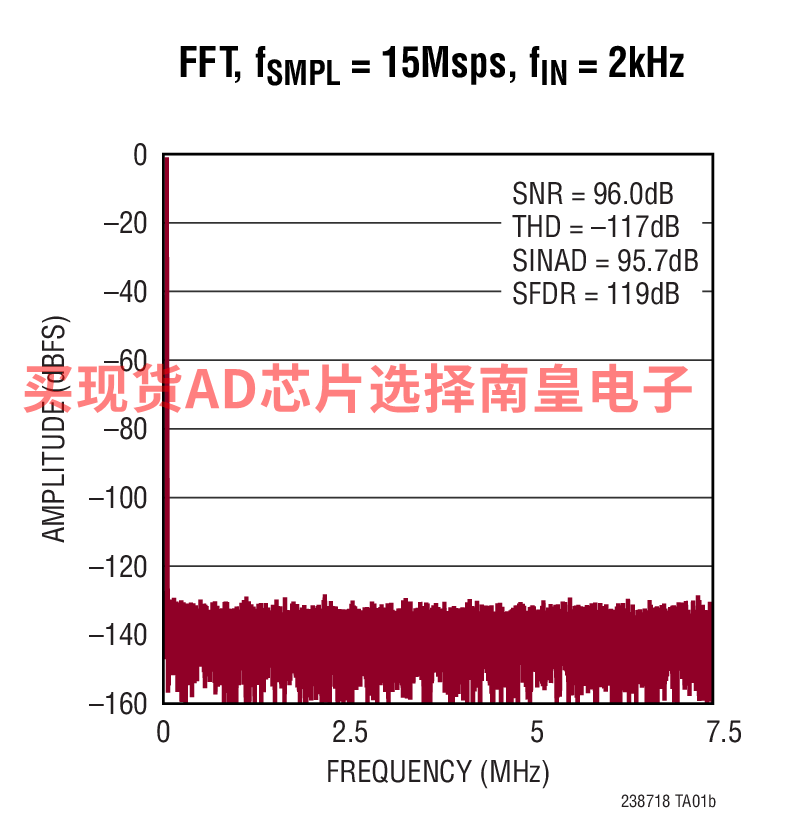

- 在 fIN = 1MHz 时的 SNR 典型值为 95.7dB
- 在 fIN = 1MHz 时的 SFDR 典型值为 102dB
- 输入频率高达 7.5MHz 的奈奎斯特采样
- 保证 18 位，无漏失码
- ±3LSB INL (最大值)
- 8.192VP-P 差分输入
- 5V 和 2.5V 电源
- 内部 20ppm/°C (最大值) 基准
- 串行 LVDS 接口
- 125mW 功率耗散

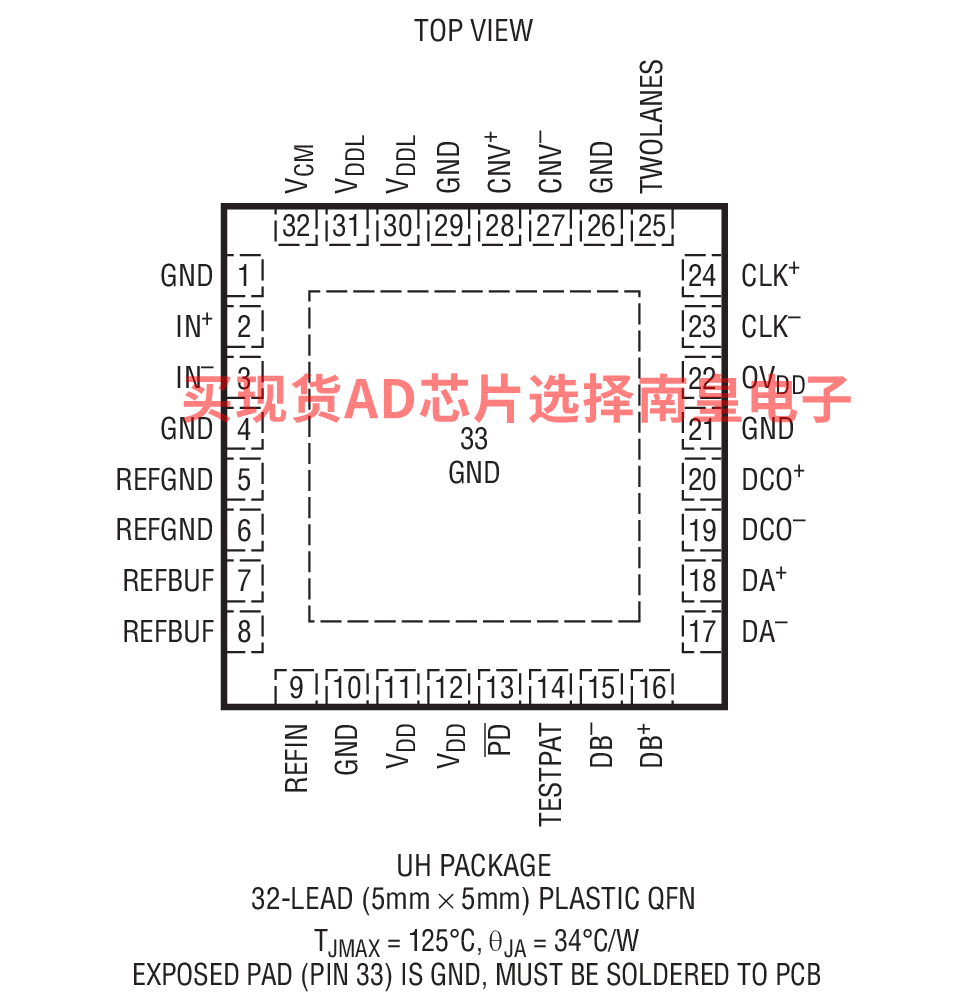

- 32 引脚 (5mm x 5mm) QFN 封装
LTC2387CUH-18#PBF，封装：32-Lead QFN (5mm x 5mm x 0.75mm w/ EP)，包装形式及数量：管装，73，工作温度：0 to 70C，AD官网报价：39.48（100-499个）；32.51（1000+个）
LTC2387CUH-18#TRPBF，封装：32-Lead QFN (5mm x 5mm x 0.75mm w/ EP)，包装形式及数量：卷带，2500，工作温度：0 to 70C，AD官网报价：39.48（100-499个）；32.51（1000+个）
LTC2387IUH-18#PBF，封装：32-Lead QFN (5mm x 5mm x 0.75mm w/ EP)，包装形式及数量：管装，73，工作温度：-40 to 85C，AD官网报价：45.35（100-499个）；37.35（1000+个）
LTC2387IUH-18#TRPBF，封装：32-Lead QFN (5mm x 5mm x 0.75mm w/ EP)，包装形式及数量：卷带，2500，工作温度：-40 to 85C，AD官网报价：45.35（100-499个）；37.35（1000+个）

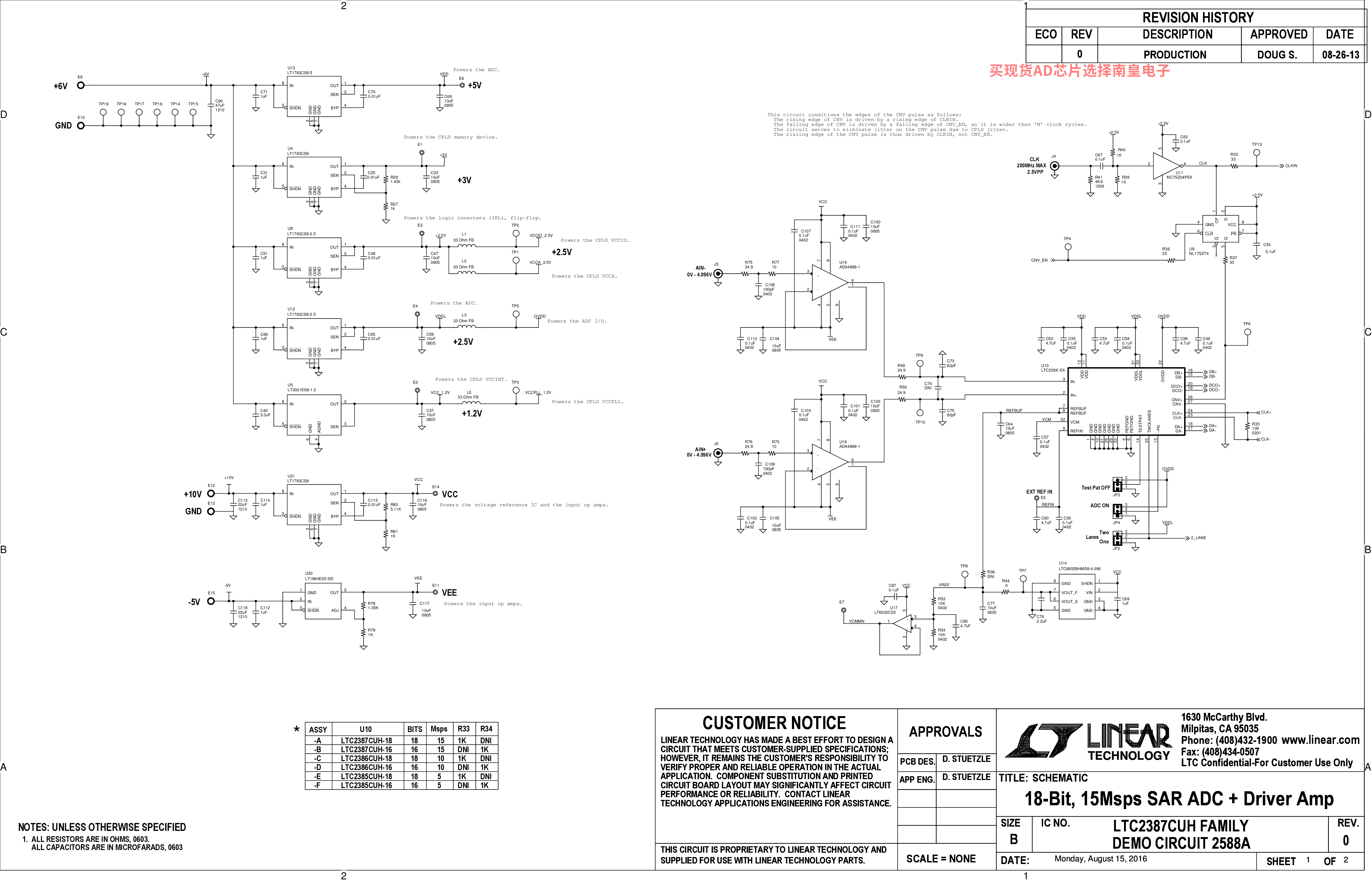

DC2588A-A：LTC2387-18 Demo Board | 18-Bit, 15Msps SAR ADC Using ADA4899-1 ADC Driver (Requires DC718)
Demonstration circuit 2588A features the LTC2387 family driven by a pair of ADA4899-1 driver amplifiers. With up to 15Msps, these differential input, single channel, 18-/16- Bit, serial, high speed successive approximation register (SAR) ADCs are available in a 32-Pin QFN package. The LTC2387 family has an internal 20ppm/°C reference and a serial LVDS interface. The demo manual refers to the LTC2387 but applies to all members of the family, the only difference being the sample rate and the number of bits.

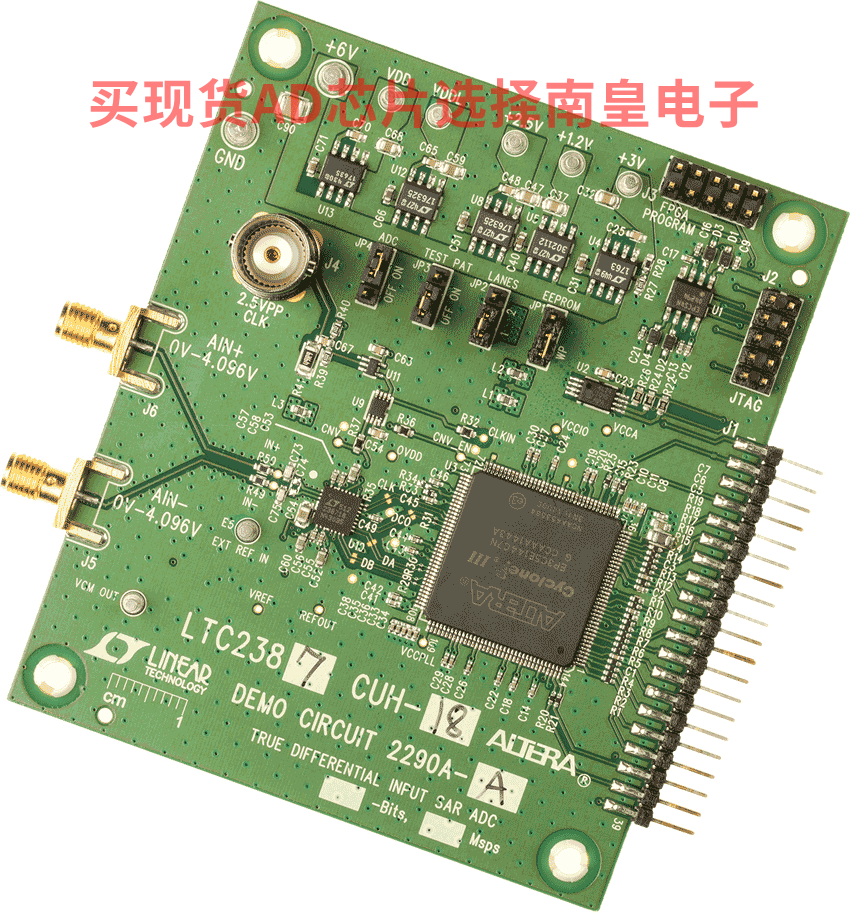

DC2290A-A：LTC2387-18 Demo Board | 18-Bit, 15Msps SAR ADC (Requires DC718 and ADC Driver Board)
Demonstration circuit 2290A features the LTC2387 family. With up to 15Msps, these differential input, single channel, 18-/16-Bit, serial, high speed successive approximation register (SAR) ADCs are available in a 32-Pin QFN package. The LTC2387 family has an internal 20ppm/°C reference and a serial LVDS interface. The demo manual refers to the LTC2387 but applies to all members of the family, the only difference being the sample rate and the number of bits. The DC2290A demonstrates the AC performance of the LTC2387 in conjunction with the DC718 data collection board. Differential amplifier demo boards are available separately that provide amplification of low level differential signals if required. Alternatively, by connecting the DC2290A into a customer application the performance of the LTC2387 can be evaluated directly in that circuit.
