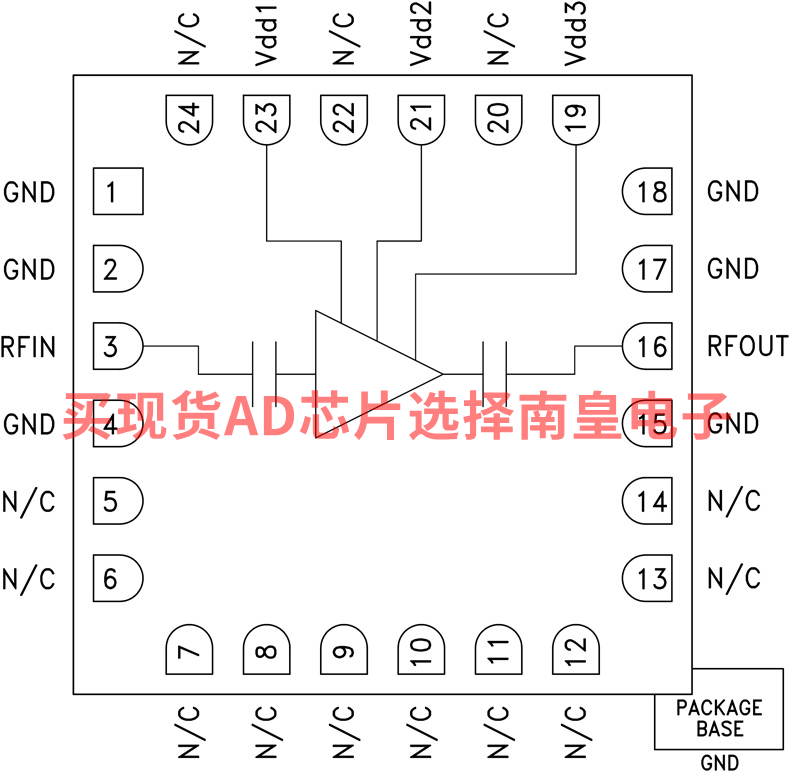

HMC963LC4是一款自偏置GaAs MMIC低噪声放大器，采用无引脚4x4 mm陶瓷表面贴装封装。 该放大器的工作频率范围为6至26.5 GHz，提供20 dB的小信号增益，2.5 dB的噪声系数，+18 dBm的输出IP3，采用+3.5 V电源供电时功耗仅为45 mA。 +10 dBm的P1dB输出功率使LNA可用作平衡、I/Q或镜像抑制混频器的LO驱动器。 HMC963LC4还具有隔直的I/O，内部匹配至50 Ohms，因而非常适合高容量微波无线电和VSAT应用。

应用

• 点对点无线电
• 点对多点无线电
• 军事和太空
• 测试仪器仪表

• 低噪声系数： 2.5 dB
• 高增益： 22 dB
• P1dB输出功率： 10 dBm
• 单电源电压： +3.5V (45mA)
• 输出IP3： +18 dBm
• 50 Ω匹配输入/输出
• 24引脚4x4 mm SMT封装： 16mm

HMC963LC4，封装：24-Lead LCC (4mm x 4mm w/ EP)，包装形式及数量：Cut Tape,500，工作温度：-40 to 85C，AD官网报价：38.27（100-499个）

HMC963LC4TR，封装：24-Lead LCC (4mm x 4mm w/ EP)，包装形式及数量：卷带，100，工作温度：-40 to 85C，AD官网报价：38.27（100-499个）

HMC963LC4TR-R5，封装：24-Lead LCC (4mm x 4mm w/ EP)，包装形式及数量：卷带，500，工作温度：-40 to 85C，AD官网报价：38.27（100-499个）

EVAL-HMC963LC4：HMC963LC4评估板

本页提供评估HMC963LC4的评估板信息。

---

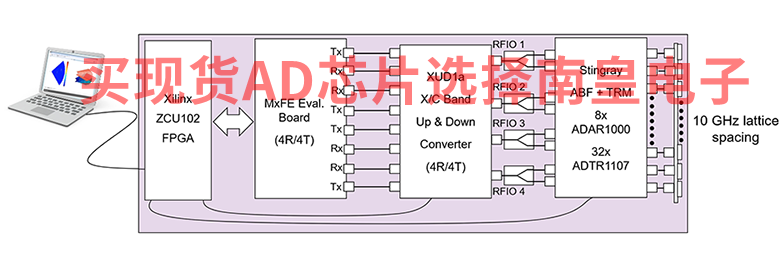

X-Band Phased Array Platform：Scalable 32 Element Hybrid Beamforming Phased-Array RADAR Development Platform

The X-Band Development Platform contains one MxFE software defined, direct RF sampling transceivers, X-Band to C-Band Up/Down Converter, and a X/Ku Band analog phased array proto-typing platform. The target application is phased array radars, electronic warfare, and ground-based SATCOM, specifically a X Band 32 transmit/32 receive channel hybrid beamforming phased array radar.

The X-Band Development Platform highlights a complete system solution. It is intended as a testbed for demonstrating hybrid beamforming phased array radar as well as the implementation of system level calibrations, beamforming algorithms, and other signal processing algorithms. The system is designed to mate with a ZCU102 Evaluation Board from Xilinx, which features the Zynq UltraScale+ MPSoC FPGA, with provided reference software, HDL code, and MATLAB system-level interfacing software.

The system can be used to enable quick time-to-market development programs for applications like:

ADEF (Phased-Array, RADAR, EW, SATCOM) Hybrid Beamforming Electronic Test and Measurement
