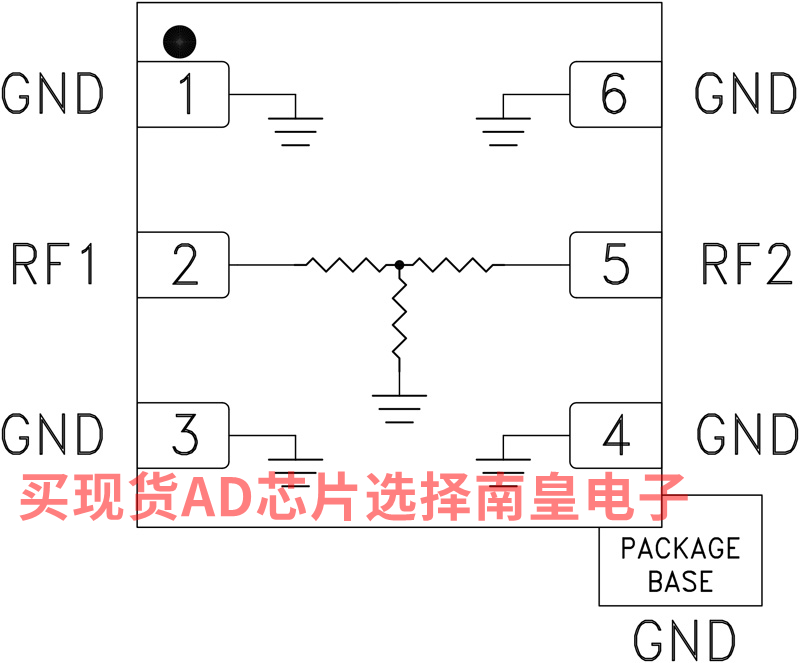

HMC652LP2E/653LP2E/654LP2E/655LP2E是一系列宽带固定值SMT50 Ω匹配衰减器，分别提供2、3、4和6 dB衰减电平。 这些无源衰减器非常适合需要极端平坦衰减和出色的VSWR与频率关系的军用、测试设备和其它宽带应用。

宽带衰减器可处理高达+25 dBm的输入功率，与高容量表贴制造技术兼容。

应用

• 光纤产品
• 微波无线电
• 军事和太空
• 测试与测量
• 科研仪器
• RF/微波电路原型制作

• 4大衰减器产品：
• 固定衰减电平：2、3、4和6 dB
• 宽带宽： DC - 25 GHz

• 出色的衰减精度
• 功率处理： +25 dBm
• 6引脚2x2mm SMT封装： 4mm²

HMC652LP2E，封装：6-Lead QFN (2mm x 2mm w/ EP)，包装形式及数量：Cut Tape,500，工作温度：25C，AD官网报价：3.69（100-499个）

HMC652LP2ETR，封装：6-Lead QFN (2mm x 2mm w/ EP)，包装形式及数量：卷带，500，工作温度：25C，AD官网报价：3.69（100-499个）

EVAL-HMC652LP2E：HMC652LP2E 评估板

本页提供评估HMC652LP2E的评估板订购信息。

---

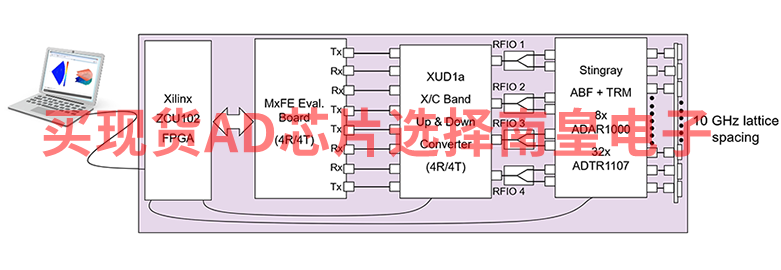

X-Band Phased Array Platform：Scalable 32 Element Hybrid Beamforming Phased-Array RADAR Development Platform

The X-Band Development Platform contains one MxFE software defined, direct RF sampling transceivers, X-Band to C-Band Up/Down Converter, and a X/Ku Band analog phased array proto-typing platform. The target application is phased array radars, electronic warfare, and ground-based SATCOM, specifically a X Band 32 transmit/32 receive channel hybrid beamforming phased array radar.

The X-Band Development Platform highlights a complete system solution. It is intended as a testbed for demonstrating hybrid beamforming phased array radar as well as the implementation of system level calibrations, beamforming algorithms, and other signal processing algorithms. The system is designed to mate with a ZCU102 Evaluation Board from Xilinx, which features the Zynq UltraScale+ MPSoC FPGA, with provided reference software, HDL code, and MATLAB system-level interfacing software.

The system can be used to enable quick time-to-market development programs for applications like:

ADEF (Phased-Array, RADAR, EW, SATCOM) Hybrid Beamforming Electronic Test and Measurement
