ADUM4120（Isolated, Precision Gate Driver with 2 A Output）-AD代理

ADUM4120的基本参数

制造厂商：AD
产品类别：隔离式栅极驱动器
技术类目：隔离式栅极驱动器
功能描述：Isolated, Precision Gate Driver with 2 A Output
（AD代理渠道，提供当日发货、严格的质量标准，满足您的目标价格）

ADUM4120的产品详情：

The ADuM4120/ADuM4120-1 are 2 A isolated, single-channel drivers that employ Analog Devices, Inc., iCoupler technology to provide precision isolation. The ADuM4120/ADuM4120-1provide 5 kV rms isolation in the 6-lead wide body SOIC package with increased creepage. Combining high speed CMOS and monolithic transformer technology, these isolation components provide outstanding performance characteristics, such as the combination of pulse transformers and gate drivers.

The ADuM4120/ADuM4120-1 operate with input supplies ranging from 2.5 V to 6.5 V, providing compatibility with lowervoltage systems. In comparison to gate drivers employing high voltage level translation methodologies, the ADuM4120/ADuM4120-1 offer the benefit of true, galvanic isolation betweenthe input and the output.

Options exist for models with and without an input glitch filter. The glitch filter helps reduce the chance of noise on the input pintriggering an output.

As a result, the ADuM4120/ADuM4120-1 provide reliable control over the switching characteristics of insulated gatebipolar transistor (IGBT)/metal-oxide semiconductor field effect transistor (MOSFET) configurations over a wide range of switching voltages.

Applications

Switching power supplies
IGBT/MOSFET gate drivers
Industrial inverters
Gallium nitride (GaN)/silicon carbide (SiC) power devices

ADUM4120的优势和特点：

2.3 A peak output current (<2 Ω RDSON_x)
2.5 V to 6.5 V VDD1 input
4.5V to 35 V VDD2 output
UVLO at 2.3 V VDD1
Multiple UVLO options on VDD2
- Grade A—4.4 V (typical) positive going threshold
- Grade B—7.3 V (typical) positive going threshold
- Grade C—11.3 V (typical) positive going threshold
Precise timing characteristics

79 ns maximum isolator and driver propagation delay falling edge (ADuM4120)

CMOS input logic levels
High common-mode transient immunity: 150 kV/μs
High junction temperature operation: 125°C
Default low output
Safety and regulatory approvals (pending)
- UL recognition per UL 1577
  - 5 kV rms for 1 minute SOIC long package
- CSA Component Acceptance Notice 5A
- VDE certificate of conformity (pending)
  - DIN V VDE V 0884-10 (VDE V 0884-10):2006-12
  - VIORM = 849 V peak
8 mm creepage

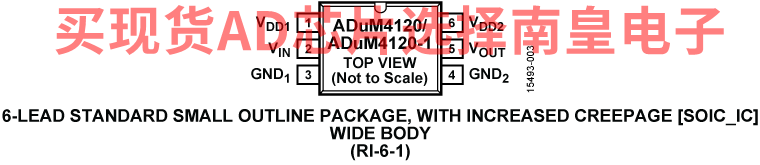

Wide body, 6-lead SOIC with increased creepage

ADUM4120具体的完整产品型号参数及价格（美元）：

ADUM4120ARIZ，封装：6-Lead SOIC (Increased Creepage)，包装形式及数量：管装，100，工作温度：-40 to 125C，AD官网报价：2.59（100-499个）；1.9（1000+个）

ADUM4120ARIZ-RL，封装：6-Lead SOIC (Increased Creepage)，包装形式及数量：卷带，1500，工作温度：-40 to 125C，AD官网报价：2.59（100-499个）；1.9（1000+个）

ADUM4120BRIZ，封装：6-Lead SOIC (Increased Creepage)，包装形式及数量：管装，100，工作温度：-40 to 125C，AD官网报价：2.59（100-499个）；1.9（1000+个）

ADUM4120BRIZ-RL，封装：6-Lead SOIC (Increased Creepage)，包装形式及数量：卷带，1500，工作温度：-40 to 125C，AD官网报价：2.59（100-499个）；1.9（1000+个）

ADUM4120CRIZ，封装：6-Lead SOIC (Increased Creepage)，包装形式及数量：管装，100，工作温度：-40 to 125C，AD官网报价：2.59（100-499个）；1.9（1000+个）

ADUM4120CRIZ-RL，封装：6-Lead SOIC (Increased Creepage)，包装形式及数量：卷带，1500，工作温度：-40 to 125C，AD官网报价：2.59（100-499个）；1.9（1000+个）

ADUM4120的评估套件：

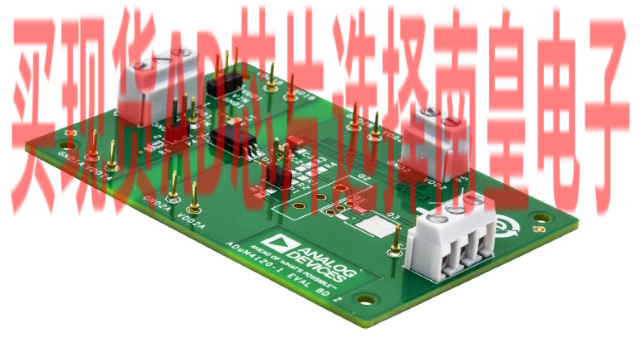

EVAL-ADuM4120：ADuM4120 和 ADuM4120-1 评估板

评估板EVAL-ADuM4120EBZ和EVAL-ADuM4120-1EBZ支持集成米勒箝位的ADuM4120/ADuM4120-1单通道栅极驱动器。ADI公司的 iCoupler 技术在输入信号与输出栅极驱动器之间实现隔离。EVAL- ADuM4120-1EBZ选项配有ADuM4120-1，它未集成内部输入毛刺滤波器，因此传播延迟更低。

UG-1109中的说明和器件同时适用于EVAL-ADuM4120EBZ和EVAL-ADuM4120-1EBZ。

ADuM4120/ADuM4120-1的工作电压最高可达35 V。高共模瞬变抗扰度(CMTI)和可靠的驱动强度使ADuM4120/ADuM4120-1非常适合快速开关技术。

EVAL-ADuM4120EBZ评估板有助于对该器件的传播延迟、驱动强度和输入逻辑进行测试。

有关ADuM4120/ADuM4120-1的完整信息，请参阅ADuM4120/ADuM4120-1数据手册，使用评估板时应同时参考UG-1109与数据手册。

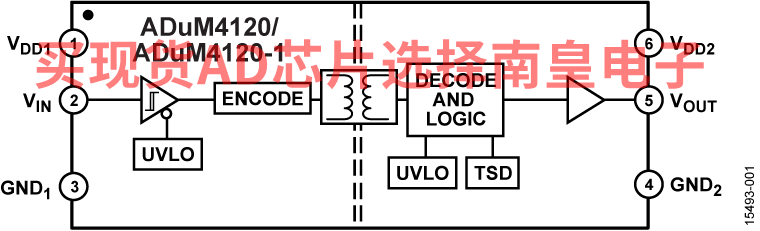

ADUM4120的电路图解：

ADUM4120的评估套件：
