ADP198是一款高端负载开关，采用1.65 V至6.5 V电源供电，可防止电流反向从输出端流向输入端。负载开关可提供电源域隔离，有助于保持子系统隔离和独立供电，从而降低功耗。ADP198内置一个低导通电阻P沟道MOSFET，支持1 A以上的连续负载电流。ADP198具有2.5 μA的低静态电流和超低关断电流，因此非常适合电池供电的便携式设备使用。借助内置的使能逻辑电平转换器，ADP198可兼容现代处理器和GPIO控制器。LFCSP封装还允许用户对启动时间进行编程，以控制上电时的浪涌电流。

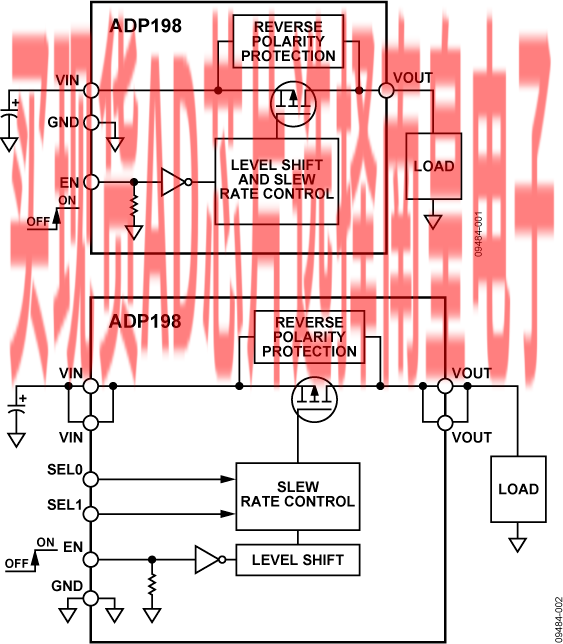

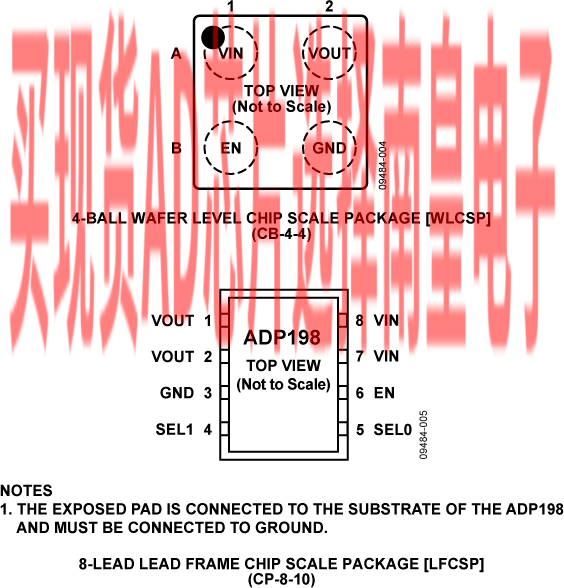

ADP198采用4引脚、1 mm x 1 mm、0.5 mm间距、超小型WLCSP封装。此外还提供8引脚2 mm x 2 mm x 0.55 mm、0.5 mm间距LFCSP封装。

应用
- 移动电话
- 数码相机和音频设备
- 便携式和电池供电设备

• 低 RDSON ：50 mΩ (3.3 V，WLCSP)
• 低输入电压范围：
  1.65 V至6.5 V
• 连续工作电流：1 A
• 内置用于控制逻辑的电平转换器，以1.5 V逻辑工作
• 低静态电流：2.5 µA (VIN = 2.8 V)

• 低关断电流：0.1 μA (VIN = 2.8)
• 反向电流阻挡
• 可编程启动时间
• 4引脚、1 mm × 1 mm、0.5 mm间距超小型WLCSP封装
• 8引脚2x2小型LFCSP（引脚架构芯片级封装）

ADP198ACBZ-11-R7，封装：4-Ball WLCSP (1.02mm x 0.95mm)，包装形式及数量：卷带，3000，工作温度：-40 to 85C，AD官网报价：0.39（1000+个）

ADP198ACBZ-R7，封装：4-Ball WLCSP (1.02mm x 0.95mm)，包装形式及数量：卷带，3000，工作温度：-40 to 85C，AD官网报价：0.39（1000+个）

ADP198ACPZ-R7，封装：8-Lead LFCSP (2mm x 2mm w/ EP)，包装形式及数量：卷带，3000，工作温度：-40 to 85C，AD官网报价：0.39（1000+个）

EVAL-ADP198：ADP198 Evaluation Board

The ADP198 evaluation boards are used to demonstrate the functionality of the ADP198 power switch.

Simple device measurements such as VIN to VOUT resistance (RDSON), ground current, and off state current can be demonstrated with just a single voltage source, a voltmeter, an ammeter, and load resistors.

Full details about the ADP198 power switch are available in the ADP198 data sheet, which should be consulted when using the ADP198 evaluation boards.

---
