ADN4691E/ADN4693E/ADN4696E/ADN4697E都是多点低电压差分信号(M-LVDS)收发器（驱动器和接收器对），工作速率最高可达200 Mbps (100 MHz)。接收器可在-1 V至+3.4 V的共模电压范围内利用低至50 mV的差分输入检测总线状态。总线引脚上提供最高可达±15 kV的ESD保护。这些器件遵循M-LVDS的TIA/EIA-899标准，为TIA/EIA-644 LVDS器件添加了额外的多点能力。

ADN4691E/ADN4693E都是具有25 mV迟滞的1类接收器，因此缓慢变化的信号或输入损耗不至于引起输出振荡。ADN4696E/ADN4697E都是具有失调阈值的2类接收器，可在总线处于空闲状态（总线空闲故障安全）或输入端断开（开路故障安全）时保证输出状态。

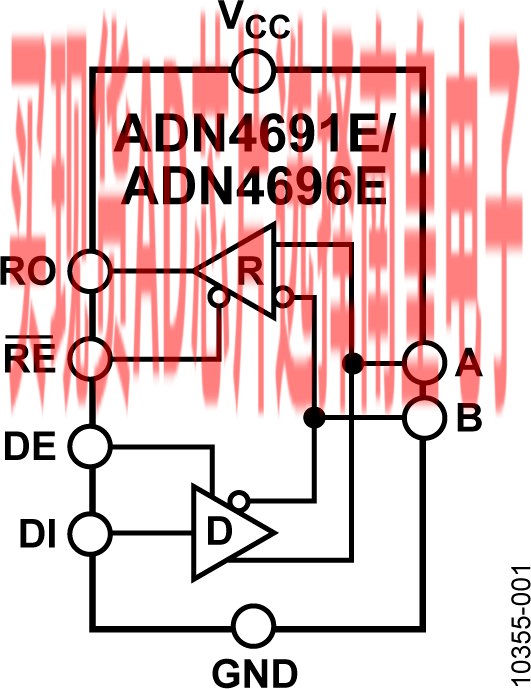

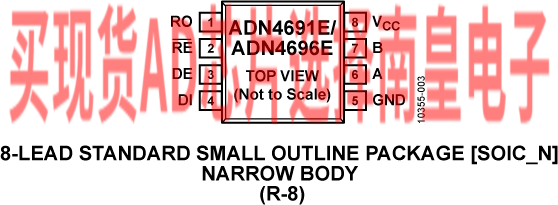

这些器件提供8引脚SOIC封装的半双工配置(ADN4691E/ADN4696E)或14引脚SOIC封装的全双工配置(ADN4693E/ADN4697E)。

应用
- 背板和电缆多点数据传输
- 多点时钟分配
- 低功耗、高速替代器件，可缩短RS-485链路
- 联网和无线基站基础设施

• 符合M-LVDS的TIA/EIA-899标准
• 转换速率：200 Mbps (100 MHz)
• 1类接收器
• 半双工

• M-LVDS总线上的无毛刺上电/关断
• 驱动器输出转换时间可控
• 总线引脚提供增强ESD保护
  -- ±15 kV HBM（人体模型）
  -- ±10 kV IEC 61000-4-2，气隙放电
  -- ±8 kV IEC 61000-4-2，接触放电
• 共模范围：-1 V至+3.4V
• 欲了解更多特性，请参考数据手册

ADN4691EBRZ，封装：8-Lead SOIC，包装形式及数量：管装，98，工作温度：-40 to 85C，AD官网报价：1.8（100-499个）；1.56（1000+个）

ADN4691EBRZ-RL7，封装：8-Lead SOIC，包装形式及数量：卷带，1000，工作温度：-40 to 85C，AD官网报价：1.8（100-499个）；1.56（1000+个）

AD-SYNCHRONA14-EBZ：Multichannel System Clocking Device

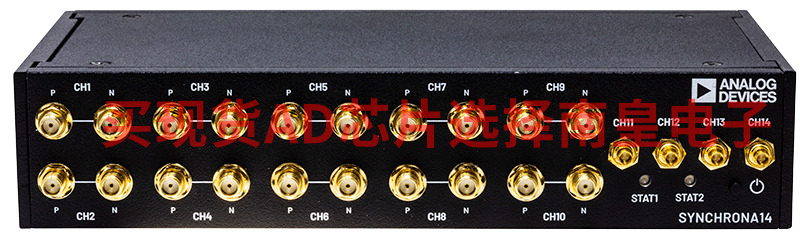

The AD-SYNCHRONA14-EBZ is an ideal self-contained device to use in evaluation and prototyping of applications that need a highly accurate frequency and phase-controlled source clock. It is designed around the Analog Devices AD9545 and HMC7044 and greatly simplifies clock distribution and multi-channel synchronization in complex systems. It is intended to be used by trained professionals in a laboratory environment, and not intended as an end product for commercial use. It can be taken as a complete reference design and customised as required for any end customer applications. Full design details are made available free of charge.

The AD-SYNCHRONA14-EBZ comes in a 1U mechanical form factor. Using popular industry connector SMA and TwinAX interfaces most labs will already have the needed cables.

With its internal OCXO it can operate in standalone mode or be fed from a choice of external sources, such as 3 separate high speed differential clock inputs, a 10MHz reference and 1PPS. This flexibility combined with the capability to select either of the internal VCXO options of 100MHz or 122.88MHz, gives almost unlimited choice for the frequency of interest and accuracy needed for a wide variety of application areas.

APPLICATIONS

High accuracy reference clock distribution Systems clocked from a single source Clocks derived from 100MHz or 122.88MHz Phased Array Systems, RADAR, EW, SATCOMS, SDR Bench Equipment Remote controlled operation

---

EVAL-ADN4696E：M-LVDS半双工评估板(ADN4690E/ADN4691E/ADN4694E/ADN4696E)

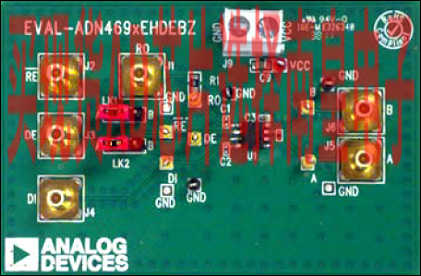

EVAL-ADN469xEHDEBZ支持轻松而快速地评估半双工M-LVDS收发器（ADN4690E、ADN4691E、ADN4694E、ADN4696E）。 所有输入和输出功能都可以通过该评估板执行，无需任何外部元件。 螺丝端子板可以方便地连接电源和地，SMB插孔连接器则支持高速逻辑和M-LVDS总线信号。

该评估板针具有适合ADN469xE系列半双工M-LVDS收发器的8引脚SOIC封装。 .
