The ADMV4801 is a silicon germanium (SiGe), 24 GHz to 29.5 GHz, mmW, 5G beamformer. This RF IC is highly integrated and contains 16 independent transmit and receive channels. In transmit mode, the RFC input signal is split using 1:16 power splitters and passes through the 16 independent transmit channels. In receive mode, input signals pass through the 16 independent channels and are combined with 16:1 combiners to the RFC pin. In transmit mode, each channel includes a vector modulator (VM) to control phase and two digital variable gain amplifiers (DVGAs) to control amplitude. In receive mode, each channel includes a VM to control phase and a DVGA to control amplitude. The VM provides a full 360° phase adjustment range in either transmit or receive mode, providing 6 bits of resolution for 5.625° phase steps. The total DVGA dynamic range adjustment range in transmit mode is 34 dB, providing 6 bits of resolution, resulting in 0.5 dB amplitude steps, and 5 bits of resolution, resulting in 1 dB amplitude steps. In receive model the total dynamic range is 17 dB providing, 6 bits of resolution, resulting in 0.5 dB amplitude steps. The DVGAs provide a flat phase response across the full gain range. The transmit channels contain individual power detectors to provide the ability to detect and calibrate each channel gain, as well as channel to channel gain mismatch. The ADMV4801 RF ports can be connected directly to a patch antenna to create a dual polarization, mmW, 5G subarray.

The programming of the ADMV4801 can be accomplished using the 3-wire or 4-wire serial port interface (SPI). An integrated, onchip low dropout regulator (LDO) generates the 1.8 V supply for the SPI circuitry to reduce the number of required supply domains. Various SPI modes are available to enable fast startup and control during normal operation. The amplitude and phase for each channel can be set individually, or multiple channels can be programmed simultaneously using the on-chip memory for beamforming. The on-chip memory can store up to 256 beam positions, which can be allocated for either transmit or receive mode. A dedicated load pin provides synchronization of all devices in the same array. A transmit and receive mode control pin is provided for fast switching between transmit and receive mode.

The ADMV4801 is featured in a compact, thermally enhanced, 10 mm × 10 mm, RoHS compliant land grid array (LGA) package. The ADMV4801 operates over the ?40°C to +95°C case temperature range. This LGA package enables the ability to heat-sink the ADMV4801 from the topside of the package for the most efficient thermal heat-sinking and to allow flexible antenna placement on the opposite side of the printed circuit board (PCB).

Throughout the figures in the data sheet, Tx means transmit (or transmitter) and Rx means receive (or receiver).

Additional digital details of ADMV4801 are available in AN-2021 Application Note, ADMV4801 SPI Application Note. Contact Analog Devices at mmWave5G@analog.com.

APPLICATIONS

• RF 频率范围：24 GHz 至 29.5 GHz，将 n257、n258 和 n261 频段集成在一个空间内
• 16 个可选的 TX 通道
• 16 个可选的 RX 通道
• 匹配的 50? 单端 RF 输入和输出
• 通过高分辨率矢量调制器实现相位控制
• 通过高分辨率 DGA 实现幅度控制
• 温度补偿
• 通过存储器存储 TX 和 RX 波束位置
• 工作温度高达 95°C
• 符合 3GPP 规范

ADMV4801BCCZ，封装：72-Terminal LGA (10mm x 10mm x 0.7mm)，包装形式及数量：托盘，168，工作温度：-40 to 95C，AD官网报价：

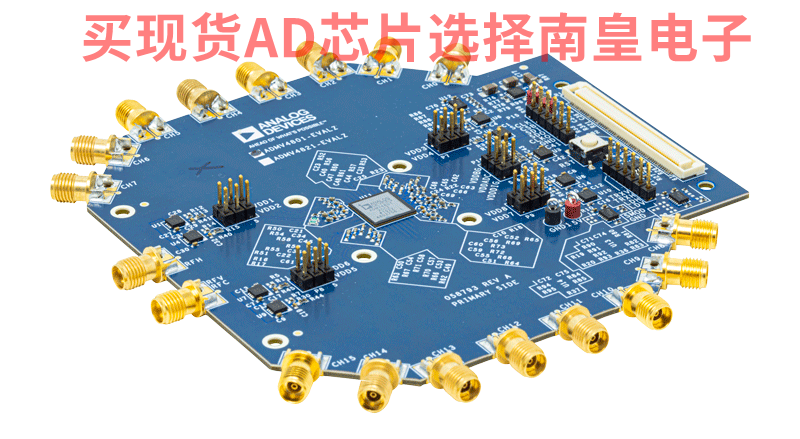

EVAL-ADMV4801：Evaluating the ADMV4801 24 GHz to 29.5 GHz Transmitter/Receiver, Single Polarization Beamformer

The ADMV4801-EVALZ evaluation board incorporates the ADMV4801 silicon germanium (SiGe), 24 GHz to 29.5 GHz, 5G beamformer with low dropout (LDO) regulators, level shifters, and an EVAL-SDP-CS1Z (SDP-S) controller board to allow the simplified and efficient evaluation of the ADMV4801. The RF IC is highly integrated and contains 16 independent transmitter and receiver channels. The chip can be programmed using a 4?wire serial port interface (SPI). The SDP-S controller allows the user to interface with the ADMV4801 SPI through the Analog Devices, Inc., Analysis, Control Evaluation (ACE) software. The level shifters translate the 1.8 V chip logic level to the 3.3 V SDP-S logic level. The LDO regulators allow the ADMV4801 to be powered on by a single supply.

For full details on the ADMV4801, see the ADMV4801 data sheet, which must be consulted in conjunction with the user guide when using the ADMV4801-EVALZ.
