ADM6306（Multiple Input Programmable Supervisory ICs）-AD代理

ADM6306的基本参数

制造厂商：AD
产品类别：监控电路
技术类目：双电源监控器
功能描述：Multiple Input Programmable Supervisory ICs
（AD代理渠道，提供当日发货、严格的质量标准，满足您的目标价格）

ADM6306的产品详情：

The ADM6305 / ADM6306 are dual voltage supervisors designed to monitor two supplies and provide a reset signal to DSP- and microprocessor-based systems. Low supply current and a small form factor make these devices suitable for portable and battery-operated applications.

If a monitored power supply voltage falls below the minimum voltage threshold, a single active low output asserts triggering a system reset. Once all voltages rise above the selected threshold level, the reset signal remains low for the reset timeout period. Four reset timeout options are available.

The ADM6305 monitors two supplies via two adjustable resistor-programmable undervoltage reset inputs. Both RST IN1 and RST IN2 have a reset threshold of either 0.4 V or 1.23 V depending on the particular model; that is, the RST IN1 and RST IN2 threshold of the ADM6305DxARJZ model is 1.23 V, while in the case of ADM6305DxARJZ1 model, it is 0.4 V. The VCC input of the ADM6305 is not a monitored input.

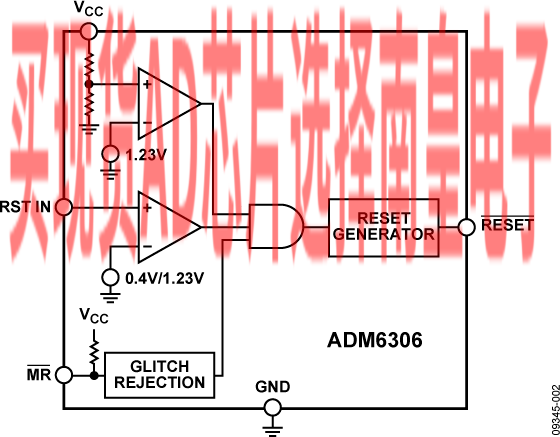

The ADM6306 has one adjustable undervoltage reset input, RST IN, which features a choice of reset threshold, 0.4 V or 1.23 V (see the Ordering Guide for more information). The ADM6306 incorporates a variety of internally pretrimmed VCC undervoltage threshold options for monitoring supply voltages in increments between 2.5 V and 5 V. The ADM6306 also includes a manual reset input.

The ADM6305 / ADM6306 RESET output remains valid as long as VCC exceeds 0.9 V.

The ADM6305 / ADM6306 are available in a 5-lead SOT-23 package. These devices are specified over the temperature range of −40°C to +125°C.

APPLICATIONS

Portable/battery-operated equipment
Microprocessor systems
Multivoltage applications

ADM6306的优势和特点：

Adjustable input threshold voltage options: 0.4 V and 1.23 V
Pre-trimmed VCC threshold options (ADM6306)
Increments between 2.5 V and 5 V
Temperature range: −40°C to +125°C
5-lead SOT-23 package

Reset output stage: active low, open drain
Low power consumption: 5 μA typical
Power supply glitch immunity
Manual reset input (ADM6306)
4 factory programmed reset timeout delays 1 ms, 20 ms, 140 ms, and
1.12 sec (minimum)

ADM6306具体的完整产品型号参数及价格（美元）：

ADM6306D131ARJZ-R7，封装：5-Lead SOT-23，包装形式及数量：卷带，3000，工作温度：-40 to 125C，AD官网报价：1.32（100-499个）；1.27（1000+个）

ADM6306D131ARJZ1R7，封装：5-Lead SOT-23，包装形式及数量：卷带，3000，工作温度：-40 to 125C，AD官网报价：1.27（1000+个）

ADM6306D329ARJZ-R7，封装：5-Lead SOT-23，包装形式及数量：卷带，3000，工作温度：-40 to 125C，AD官网报价：1.27（1000+个）

ADM6306D330ARJZ-R7，封装：5-Lead SOT-23，包装形式及数量：卷带，3000，工作温度：-40 to 125C，AD官网报价：1.27（1000+个）

ADM6306D331ARJZ-R7，封装：5-Lead SOT-23，包装形式及数量：卷带，3000，工作温度：-40 to 125C，AD官网报价：1.32（100-499个）；1.27（1000+个）

ADM6306D331ARJZ1R7，封装：5-Lead SOT-23，包装形式及数量：卷带，3000，工作温度：-40 to 125C，AD官网报价：1.27（1000+个）

ADM6306D344ARJZ-R7，封装：5-Lead SOT-23，包装形式及数量：卷带，3000，工作温度：-40 to 125C，AD官网报价：1.27（1000+个）

ADM6306D346ARJZ-R7，封装：5-Lead SOT-23，包装形式及数量：卷带，3000，工作温度：-40 to 125C，AD官网报价：1.27（1000+个）

ADM6306的评估套件：
