AD9522-5的基本参数

制造厂商：AD
产品类别：定时IC和时钟
技术类目：时钟产生器件
功能描述：12 LVDS/24 CMOS Output Clock Generator
（AD代理渠道，提供当日发货、严格的质量标准，满足您的目标价格）

AD9522-5的产品详情：

The AD9522-51 provides a multioutput clock distribution function with subpicosecond jitter performance, along with an on-chip PLL that can be used with an external VCO.

The AD9522 serial interface supports both SPI and I2C ports. An in-package EEPROM can be programmed through the serial interface and store user-defined register settings for power-up and chip reset.

The AD9522 features 12 LVDS outputs in four groups. Any of the 800 MHz LVDS outputs can be reconfigured as two 250 MHz CMOS outputs.

Each group of outputs has a divider that allows both the divide ratio (from 1 to 32) and the phase (coarse delay) to be set.

The AD9522 is available in a 64-lead LFCSP and can be operated from a single 3.3 V supply. The external VCO can have an operating voltage up to 5.5 V.

The AD9522 is specified for operation over the standard industrial range of ?40°C to +85°C.

The AD9520-5 is an equivalent part to the AD9522-5 featuring LVPECL/CMOS drivers instead of LVDS/CMOS drivers.

1The AD9522 is used throughout this data sheet to refer to all the members of the AD9522 family. However, when AD9522-5 is used, it is referring to that specific member of the AD9522 family.

Applications

Low jitter, low phase noise clock distribution
Clock generation and translation for SONET, 10Ge, 10G FC, and other 10 Gbps protocols
Forward error correction (G.710)
Clocking high speed ADCs, DACs, DDSs, DDCs, DUCs, MxFEs
High performance wireless transceivers
ATE and high performance instrumentation
Broadband infrastructures

AD9522-5的优势和特点：

Low phase noise, phase-locked loop (PLL) (Please see data sheet for additional details.)
Twelve 800 MHz LVDS outputs divided into 4 groups (Please see data sheet for additional details.)
Automatic synchronization of all outputs on power-up

Manual synchronization of outputs as needed
SPI- and I2C-compatible serial control port
64-lead LFCSP
Nonvolatile EEPROM stores configuration settings

AD9522-5具体的完整产品型号参数及价格（美元）：

AD9522-5BCPZ，封装：64-Lead LFCSP (9mm x 9mm w/ EP)，包装形式及数量：托盘，260，工作温度：-40 to 85C，AD官网报价：14.1（100-499个）；11.97（1000+个）

AD9522-5BCPZ-REEL7，封装：64-Lead LFCSP (9mm x 9mm w/ EP)，包装形式及数量：卷带，750，工作温度：-40 to 85C，AD官网报价：14.1（100-499个）；11.97（1000+个）

AD9522-5的评估套件：

EVAL-AD9522-5：AD9522-5 评估板

AD9522-x（以下简称AD9522）是一款极低噪声PLL时钟频率合成器，集成了VCO、时钟分频器和多达24个输出。AD9522具有自动保持和灵活的参考输入电路，支持非常平稳的参考时钟切换。AD9522系列还提供用于外部VCXO的必要配置。

AD9522评估板是一款紧凑、易于使用的平台，可用来评估AD9522的全部特性。

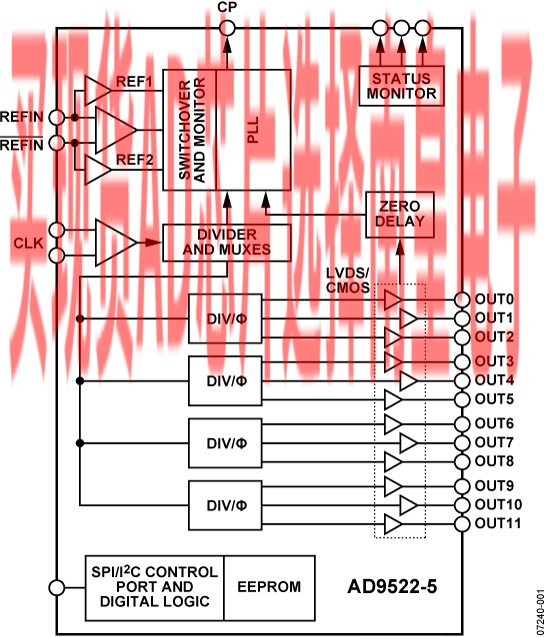

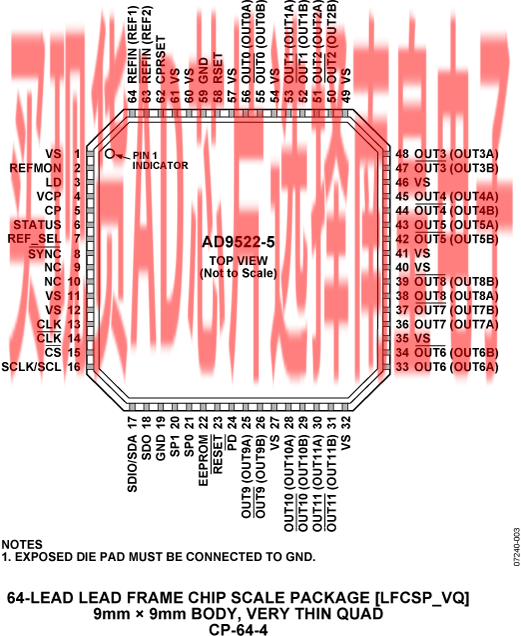

AD9522-5的电路图解：
