AD5246（128 Position I2C Compatible Programmable Resistor in SC70 Package）-AD代理

AD5246的基本参数

制造厂商：AD
产品类别：数字电位器(DigiPOT)
技术类目：数字电位器(DigiPOT)
功能描述：128 Position I2C Compatible Programmable Resistor in SC70 Package
（AD代理渠道，提供当日发货、严格的质量标准，满足您的目标价格）

AD5246的产品详情：

The AD5246 provides a compact 2 mm × 2.1 mm packaged solution for 128-position adjustment applications. This device performs the same electronic adjustment function as a variable resistor. Available in four different end-to-end resistance values (5 kΩ, 10 kΩ, 50 kΩ, 100 kΩ), these low temperature coefficient devices are ideal for high accuracy and stability variable resistance adjustments.

The wiper settings are controllable through the I2C compatible digital interface, which can also be used to read back the present wiper register control word. The resistance between the wiper and either end point of the fixed resistor varies linearly with respect to the digital code transferred into the RDAC1 latch.

Operating from a 2.7 V to 5.5 V power supply and consuming 3 μA allows for usage in portable battery-operated applications.

APPLICATIONS

Mechanical potentiometer replacement in new designs

Transducer adjustment of pressure, temperature, position,chemical, and optical sensors

RF amplifier biasing

Automotive electronics adjustment

Gain control and offset adjustment

1The terms digital potentiometer, VR, and RDAC are used interchangeably in this document.

AD5246的优势和特点：

128 Position
End-to-End Resistance 5kΩ, 10kΩ , 50kΩ , 100kΩ
Ultra-Compact SC70-6 (2 mm x 2.1 mm) Package
I2C Compatible Interface
Full Read/Write of Wiper Register
Power-on Preset to Midscale

Single Supply +2.7 V to +5.5 V
Low Temperature Coefficient 45 ppm/°C
Low Power, IDD=3 μA typical
Wide Operating Temperature –40°C to +125°C
Evaluation Board Available
Available in lead-free (Pb-free) package

AD5246具体的完整产品型号参数及价格（美元）：

AD5246BKSZ10-RL7，封装：6-Lead SC70，包装形式及数量：卷带，3000，工作温度：-40 to 125C，AD官网报价：0.57（100-499个）；0.51（1000+个）

AD5246BKSZ100-RL7，封装：6-Lead SC70，包装形式及数量：卷带，3000，工作温度：-40 to 125C，AD官网报价：0.57（100-499个）；0.51（1000+个）

AD5246BKSZ5-RL7，封装：6-Lead SC70，包装形式及数量：卷带，3000，工作温度：-40 to 125C，AD官网报价：0.57（100-499个）；0.51（1000+个）

AD5246BKSZ50-RL7，封装：6-Lead SC70，包装形式及数量：卷带，3000，工作温度：-40 to 125C，AD官网报价：0.57（100-499个）；0.51（1000+个）

AD5246的评估套件：

EVAL-AD5246：AD5246 评估板

AD5246支持2.7 V至5.5 V单电源供电，适合具有出色的低温度系数性能的电池供电应用及许多其它应用。

此外，AD5246采用多功能I2C串行接口，可在快速模式下工作，速率最高可达400 kHz。

EVAL-AD5246DBZ和EVAL-MB-LV-SDZ可在单电源模式下工作，从USB内部电源供电。

可在AD5246数据手册中找到AD5246部件的完整技术规格。

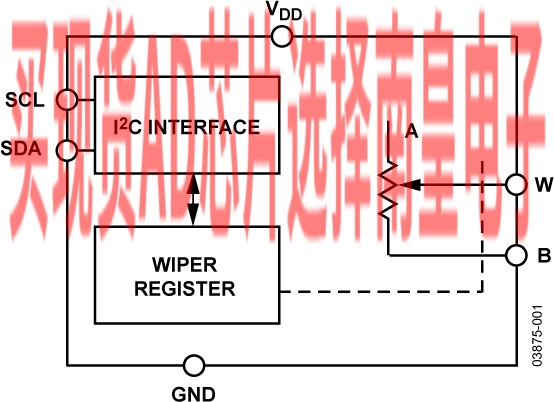

AD5246的电路图解：

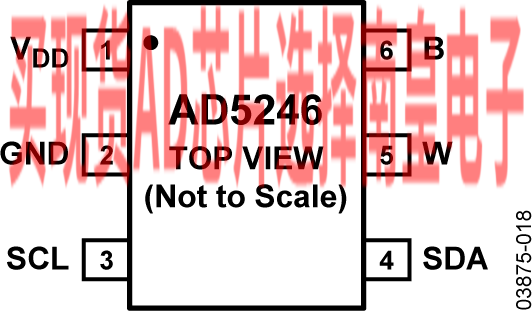

AD5246的评估套件：
